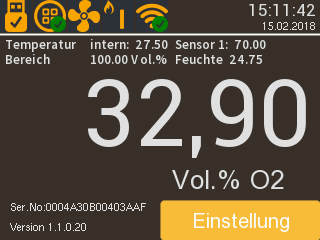

01.Symbol: power source  while using accumulator here the nattery charge condition is shown



•

02.Symbol: status of the sensor maybe "warmup" or "fault" can be shown

•


03.Symbol: meas gas pump,if pump is active this symbol is shown else not colored but grey

•


04.Symbol: display forming gas or inert gas (option) only used in combination to oxygen trace measurement

•


05.Symbol: Wlan, if active















second and third line



•

internal analyser temperature

•

sebsortemperatur, depending of the number of sensors  up to  4 displays are possible.

•

internal air pressure - only available if the related sensor is built in.

•

measuring range , brelated to the end vaue of the 4... 20 mA range

display measuring value



in the middle of the mean display - more than one value is possible .



forth line



•

serial number

•

aoftware version number





bottom line






•

Button start adjustments
